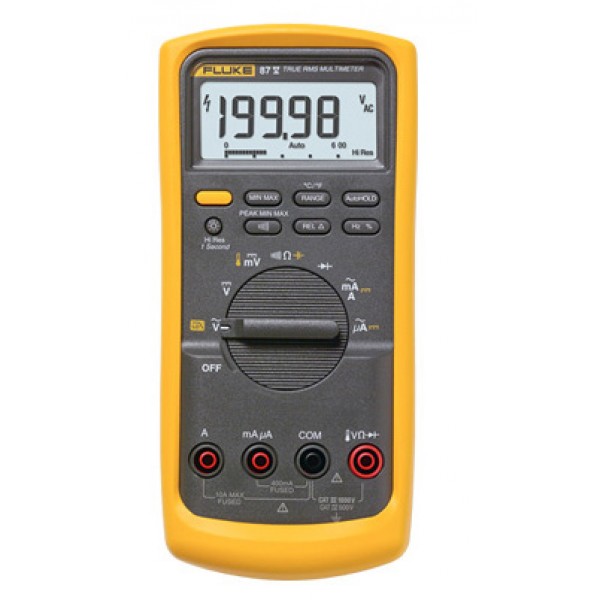

When productivity is on the line and you need to solve problems fast, the Fluke 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multimeter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy, and high altitude locations.

• Accurate frequency measurements on adjustable speed drives (ASD) due to Fluke-designed low-pass filter
• Built-in thermometer allows temperature measurements without a separate thermometer
• Peak Min/Max allows capture of intermittents as fast 250 µS
• Dual display resolution – 6000 or 20,000 counts – lets you see small changes in displayed readings
• CAT III 1000V, CAT IV 600V safety rated
• Designed and built in the U.S.A.

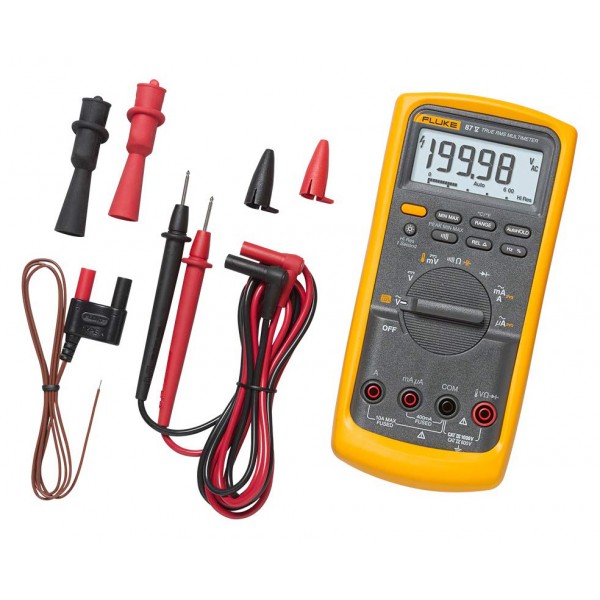

• Accessories included: TL75 Test Leads, AC175 Test Clips, 80BK Temperature Probe

Function Ranges                                                             Accuracy         Resolution
DC Voltage                 600.0mV/6.000V/60.00V/600.0V/1000 V                     ± 0.05% + 1 0.001V/0.01V/0.1V/1V
AC Voltage                 600.0mV/6.000V/60.00V/600.0V/1000 V                     ± 0.7% + 2         0.001V/0.01V/0.1V/1V
DC Current                 600.0μA/6000μA/60.00mA/600.0mA/6.000A/10.00A        ± 0.2% + 2         0.01mA/0.1mA/0.001A/0.01A
AC Current                 600.0μA/6000μA/60.00mA/600.0mA/6.000A/10.00A        ± 1.0% + 2         0.01mA/0.1mA/0.001A/0.01A
Capacitance             10.00nF/100.0nF/1.000 μF/100.0μF/9999 μF                     ± 1% + 2 0.01nF/0.1nF/0.001µF/0.1µF/1µF
Frequency                 199.99 Hz/1.9999kHz/19.999kHz/199.99kHz                     ± 0.1% + 1         0.01Hz/0.0001kHz/0.01kHz
Resistance                 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/50.00MΩ
Temperature         -40 ºC to +260 ºC with incl 80BK probe                     ± 2% or 2.2 ºC 0.1 ºC
Temperature         -200 ºC to +1090 ºC excluding probe
Duty Cycle, Conductance, Continuity & Diode Test
